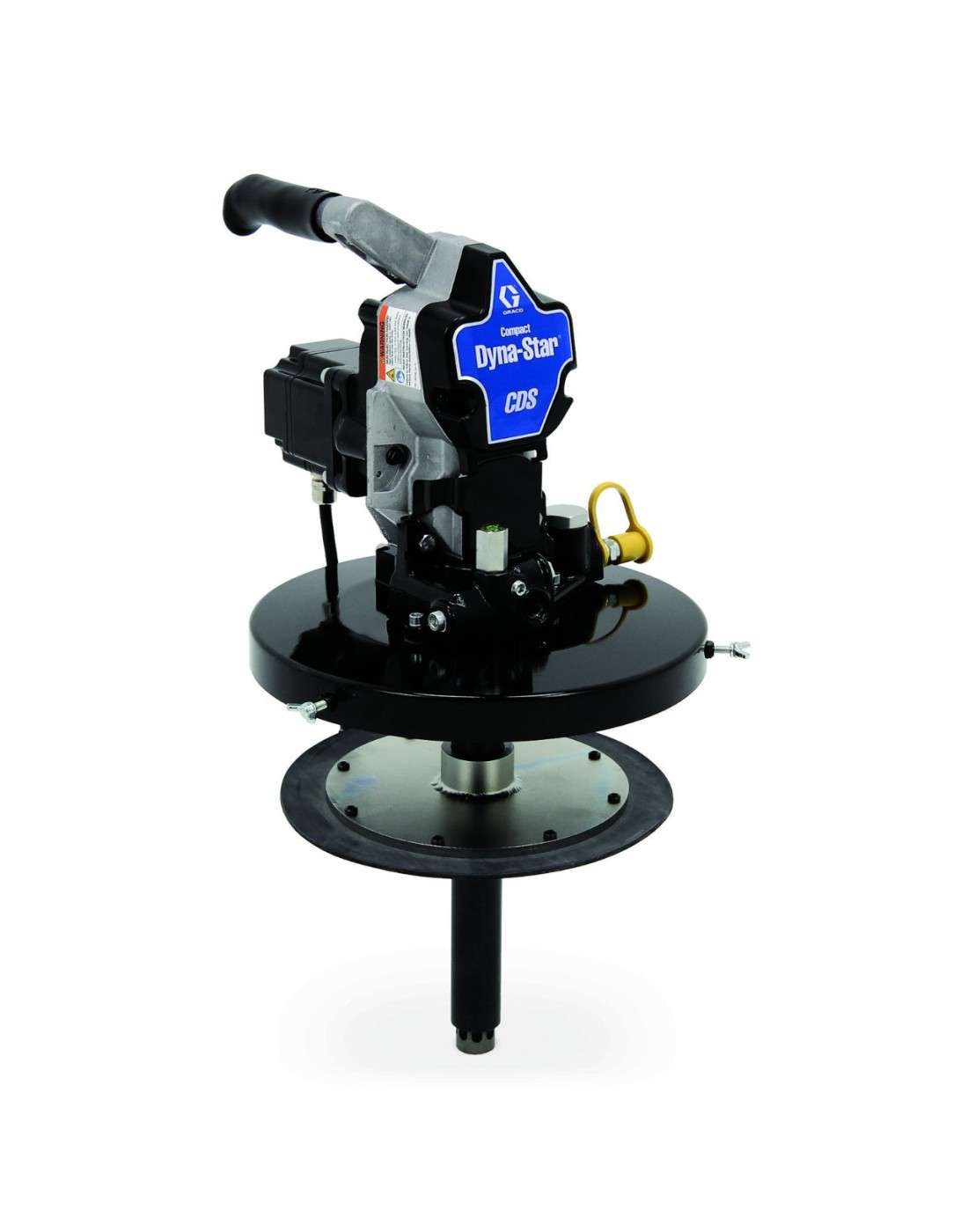

DYNA-STAR COMPACT PUMP,60 - CD3164 - Graco
Anterior
Siguiente
Producto auténtico de GRACO, con el código CD3164 y la descripción DYNA-STAR COMPACT BOMBA, 60N. Actualmente se encuentra en nuestro catálogo y es distribuido por el Servicio Oficial de GRACO.
Calificación:
(0)
- Plazo de entrega: 48 horas
close
Producto auténtico de GRACO, con referencia CD3164 y descrito como DYNA-STAR COMPACT BOMBA, 60N., que se encuentra actualmente en nuestro catálogo y es distribuido por el Servicio Oficial de GRACO.
Especificaciones operativas
| Producto UPC | 769946179309 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unidad de medida | EA |
| Altura | 0 CM |
| Longitud | 0 CM |
| Anchura | 0 CM |
| Volumen | 0 M3 |
| Shipping Weight | 0 KG |
Especificaciones técnicas
| Fluid Outlet Thread Gender | Hembra |
|---|---|
| Input Voltage (V dc) | 24 |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0,074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Intermittent Cycle Rate (CPM) | 64 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 149 |
| Maximum Operating Temperature (°F) | 65 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Power Rating (HP) | 0.25 |
| Reservoir Material | Acero |
| Sound Pressure Level (dB(A)) | 70 |
| Throat Seal Type | Hythane 181 |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| IP Rating | IP69K |
| Low Level Carry Current (A) | 0.02 |
| Maximum cST Grade (cST) | NLGI #2 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Voltage (V dc) | 30 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (cm) | 39.62 |
| Overall Depth (in) | 15.6 |
| Overall Depth (mm) | 396.2 |
| Overall Height (cm) | 72.14 |
| Overall Height (in) | 28.4 |
| Overall Height (mm) | 721.4 |
| Overall Width (cm) | 38.1 |
| Overall Width (in) | 15 |
| Overall Width (mm) | 381 |
| Vent Valve Maximum Operating Current (A) | 1 |
| Vent Valve Maximum Operating Power (W) | 25 |
| Vent Valve Output Voltage (VDC) | 24 |
| Weight (kg) | 37.6 |
| Number of Outlets | 2 |
| Maximum Working Pressure (MPa) | 24.1 |
| Voltage | 24 |
| Approvals | CE;EAC;RCM |
| Output Per Cycle (cm³) | 1 |
| Lower Type | Carga de pala integrada |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| maximum_fluid_output_pressure_bar | 241 |
