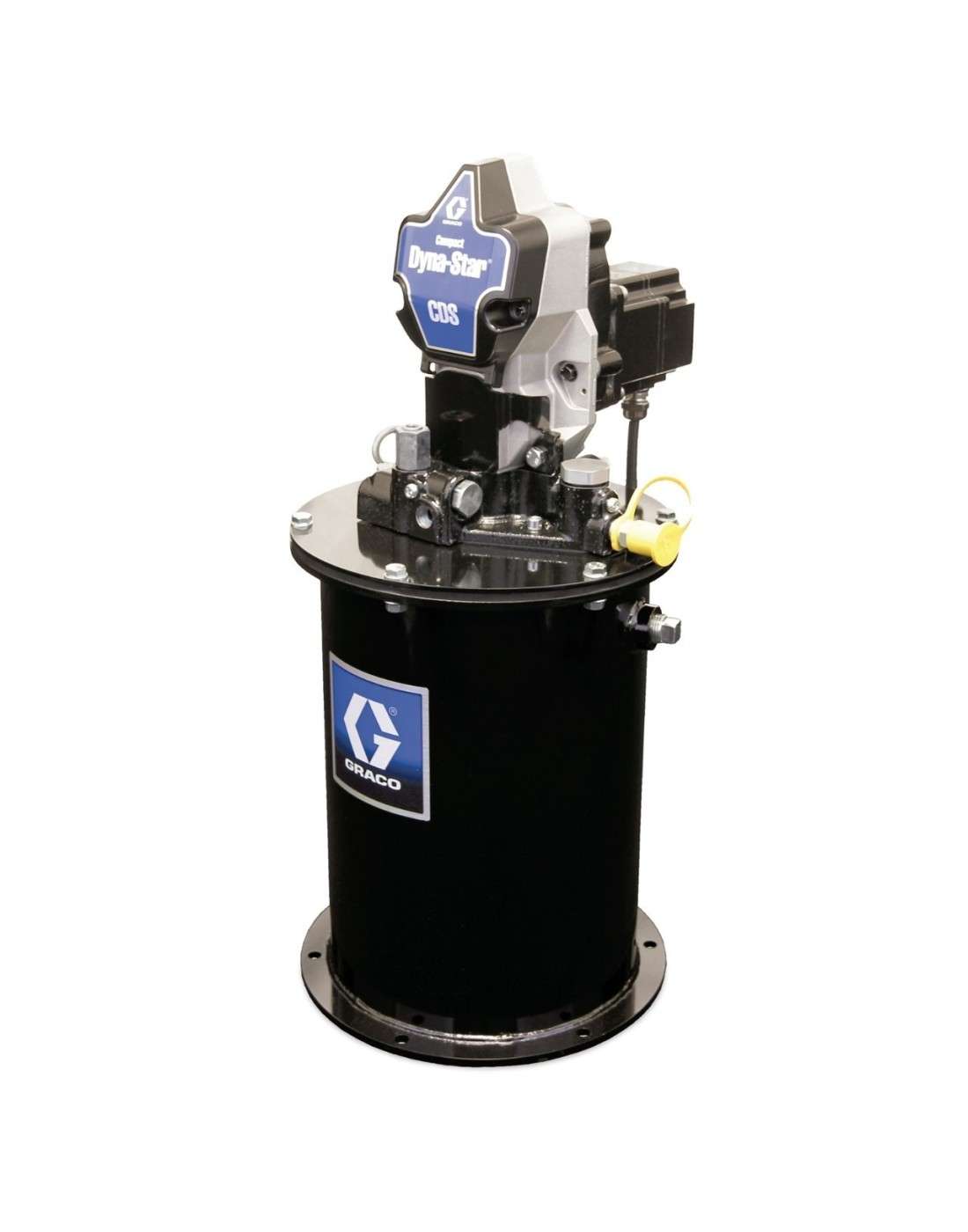

DYNA-STAR COMPACT PUMP,12L - CD1014 - Graco
Anterior
Siguiente
Producto original de GRACO, con la referencia CD1014 y la descripción DYNASTAR, COMPACT, 12L, que se encuentra actualmente en nuestro catálogo y es distribuido por el Servicio Oficial de GRACO.
Calificación:
(0)
- Plazo de entrega: 48 horas
close
Producto auténtico de GRACO, identificado con la referencia CD1014 y descrito como DYNASTAR, COMPACT,12L, que se encuentra actualmente en nuestro catálogo y es distribuido por el Servicio Oficial de GRACO.
Especificaciones operativas
| Producto UPC | 755652976578 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unidad de medida | EA |
| Altura | 0 CM |
| Longitud | 0 CM |
| Anchura | 0 CM |
| Volumen | 0 M3 |
| Shipping Weight | 25.4 KG |
Especificaciones técnicas
| Fluid Outlet Thread Gender | Hembra |
|---|---|
| For Use With | Aceite ISO 100 hasta Grasa NLGI #2 |
| Input Voltage (V dc) | 24 |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0,074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24132 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Power Rating (HP) | 0.25 |
| Reservoir Material | Acero |
| Throat Seal Type | Hythane 181 |
| Voltage (V dc) | 24 |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Control Options | Controlador de motor eléctrico integrado |
| Input Sensor Voltage (VDC) | 24 |
| IP Rating | IP69K |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switch Rating (VDC) | 24 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Voltage (V dc) | 30 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (in) | 13.9 |
| Overall Depth (mm) | 353.1 |
| Overall Height (in) | 39 |
| Overall Height (mm) | 990 |
| Overall Width (in) | 11.5 |
| Overall Width (mm) | 292 |
| Weight (kg) | 29.9 |
| Maximum Working Pressure (MPa) | 24.1 |
| Approvals | CE;RCM |
| Lower Type | Pala |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| maximum_fluid_output_pressure_bar | 241 |
